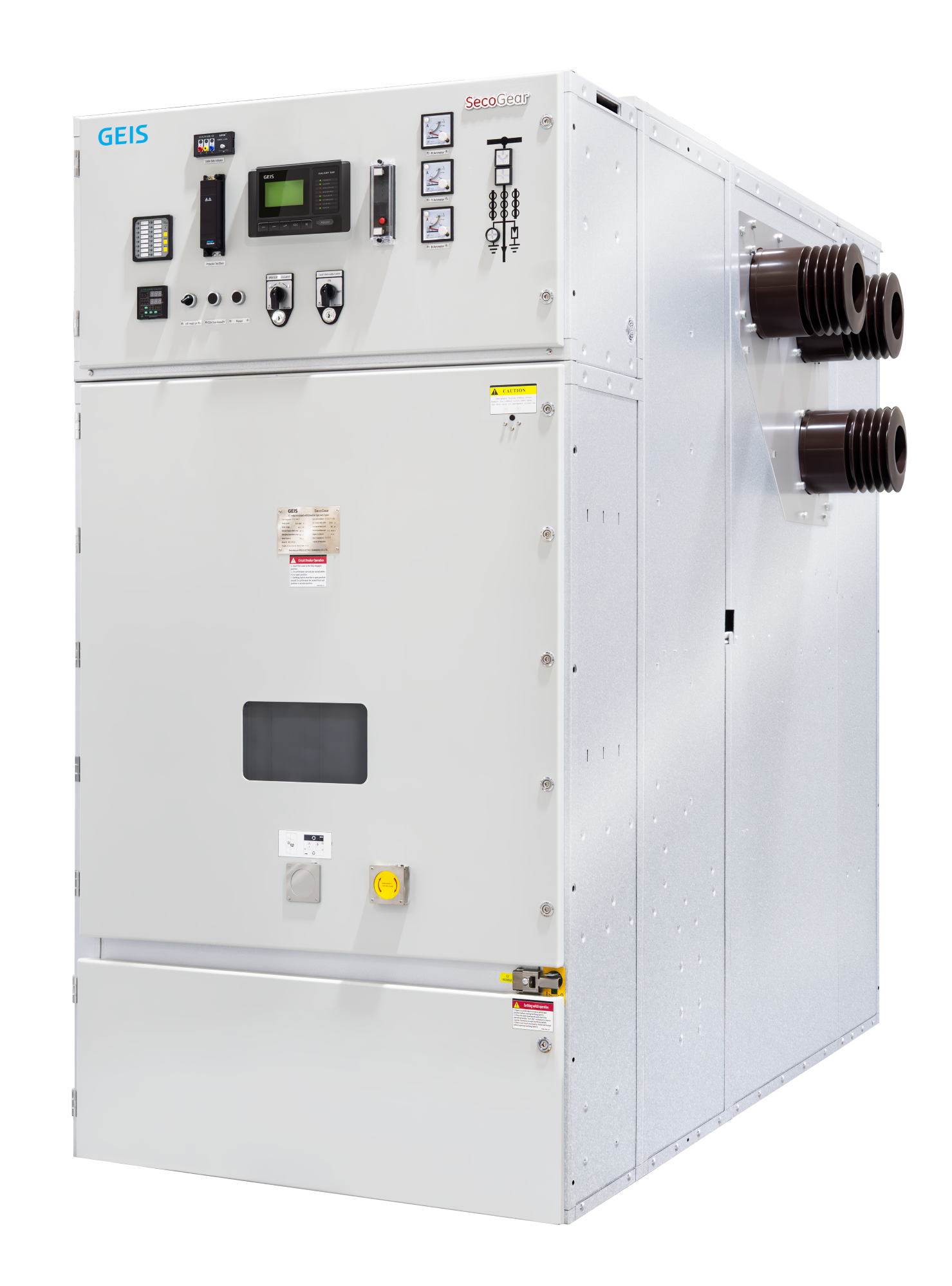

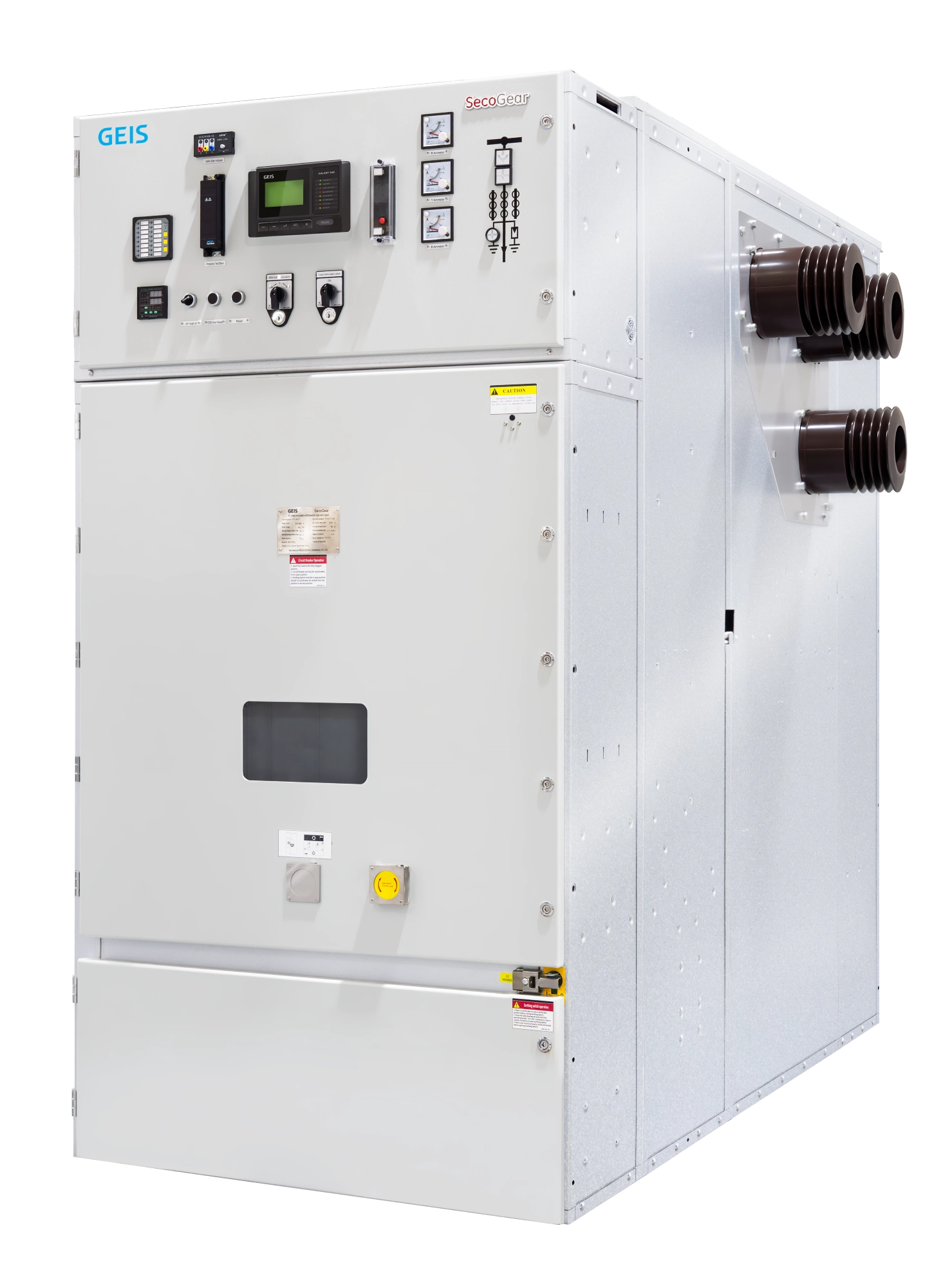

SecoGear 40.5kV Medium Voltage Metal-Clad Switchgear
By virtue of its experience, GEIS provides you with medium voltage switchgear that incorporates state-of-the-art technology and excellent engineering design; the SecoGear series is up to the most rigorous standard in terms of safety and reliability requirements. The series offers extremely cost-effective solutions to public power distribution and industrial and building applications for increased competitiveness.
SecoGear series is a model of compact air insulated switchgear of innovative design for industry-leading safety, reliability, performance and sustainability performance. It has been tested and certified to IEC 62771-100 High-voltage AC breaker, and JB/T 3855 High-voltage AC vacuum circuit breaker by Testing and Certification Center of Xi’an High Voltage Apparatus Research Institute Co., Ltd, KEMA and IPH labs. SecoGear P/V switchgear can control and protect cables, transformers, capacitors, electric motors, and other common industrial equipment. SecoGear P/V is designed to be competent in a number of appli-cation fields including all medium voltage electric power switching, control and protection.
|
Product Features |
-
Indoor metal enclosed switchgear for high-voltage/medium-voltage and medium-voltage /medium-voltage transformer station
-
Air insulated switchgear of compact design
-
Safe and reliable indoor general purpose switchgear
-
Equipped with latest SecoVac VB2 Plus embedded pole vacuum circuit breaker
-
Adequately spacious cable compartment for convenient cable connection
-
Up to IAC AFLR 40kA/1s, 50kA/0.5s
-
Tested to be compliant with applicable GB and IEC standards
-
Full interlocking system for prevention of misoperation and improved safety
