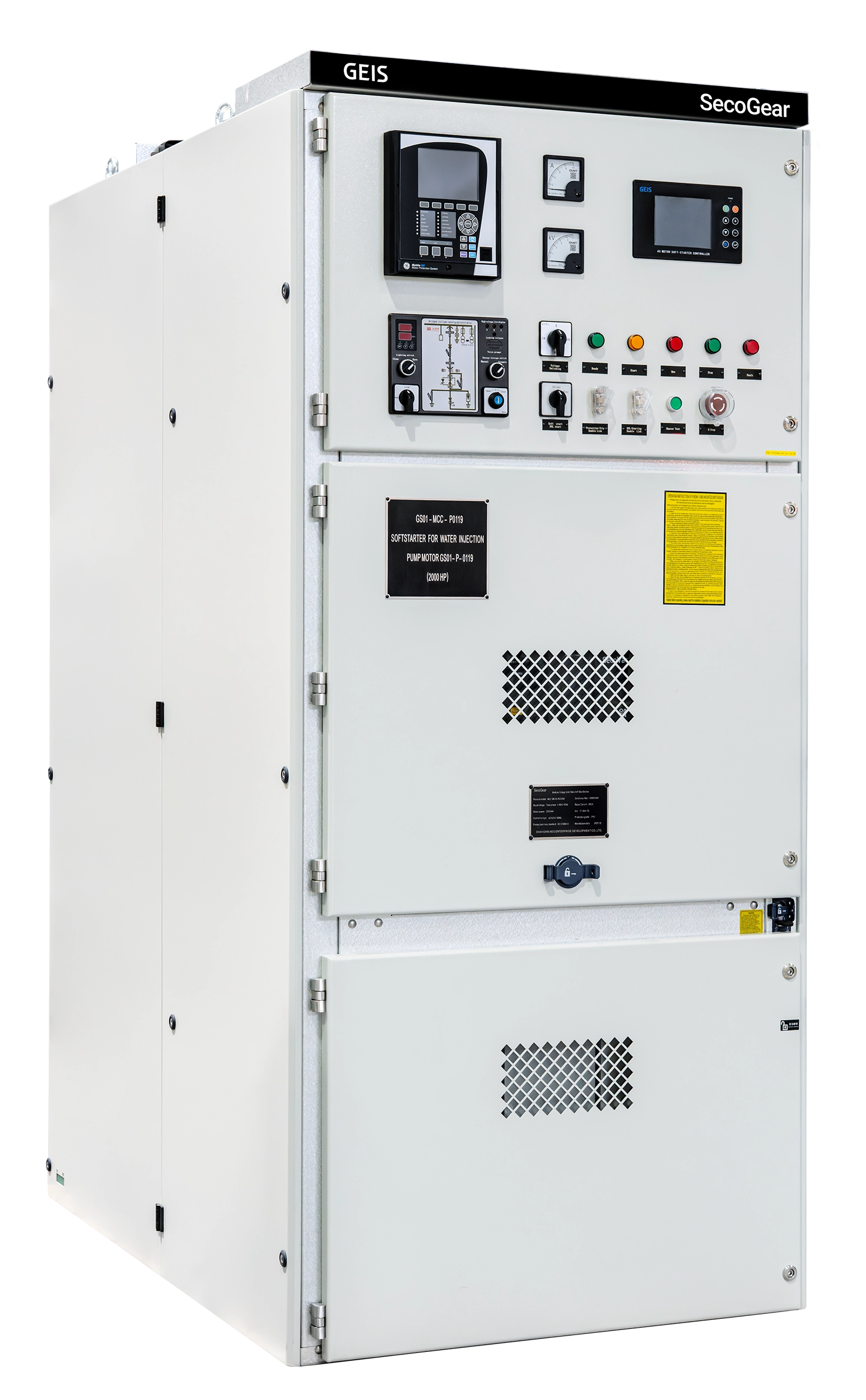

SecoGear MCC Series Medium Voltage Soft Starter
The SecoGear MCC Series Medium Voltage Soft Starter Cabinet integrates an advanced solid-state soft-starting system engineered for intelligent, reliable, and efficient motor control. Driven by a high-performance processor, the soft starter provides precise centralized control, high-speed fiber optic triggering, and comprehensive dynamic/static voltage balancing protection. These features ensure smooth motor acceleration and deceleration, reduce mechanical and electrical stress, and maintain continuous safety monitoring for optimal long-term motor performance. At the core of this solution is a fully integrated motor-starting architecture that combines both primary protection and bypass control within a single compact cubicle. The system incorporates a SecoVac vacuum circuit breaker (VCB) for incoming line protection and isolation, while the VCR193 vacuum contactor serves as the bypass circuit for efficient motor operation after soft starting. This tightly integrated design delivers enhanced system safety, greater stability, improved energy efficiency, and significant reductions in footprint and installation cost—ideal for modern medium voltage motor applications.
|
Product Features |
• For starting 3.3kV-11kV motors, can effectively reduce the starting current and extend the motor life.
• Selecting SecoGear standard enclosures.
• Equipped with latest SecoVac VB2 Plus embedded pole vacuum circuit breaker
• Up to IAC AFLR 40kA/1s
• Tested to be compliant with applicable GB and IEC standards
• Full interlocking system for prevention of misoperation and improved safety
