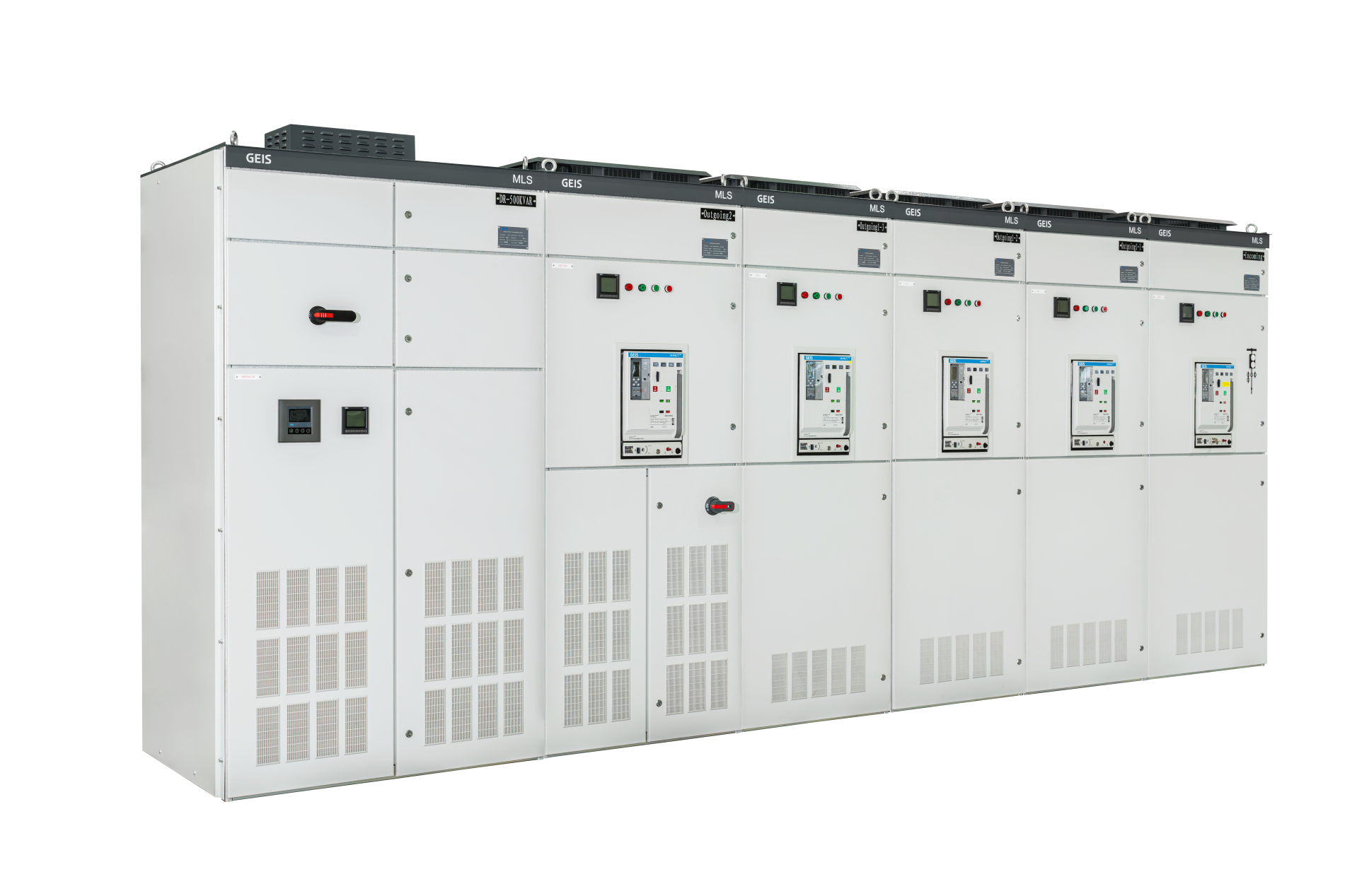

MLS 1140V switchgear
MLS 1140V switchgear assemblies are FBA switchgear made of standardized modules. They are suitable for use in power supply/distribution system of 50 (60)Hz AC electricity with rated operational voltage AC1140V and rated operational current up to 6300A for such purposes as power distribution,conversion,control and reactive compensation.
The product is compliant with IEC 61439-1 and IEC 61439-2 standards
|
Product Overview |
|
Product Features |
• Power Center
Main incoming cabinet of modular design with rated current up to 6300A
• Motor control center
Available in the forms of plug-in and withdrawable units for use in feeder and motor control loop
• Components
M-PACT Plus and M-PACT Air Circuit Breakers, up to 6400A, 150kA
R+ and RC+ series Molded Case Circuit Breaker, up to 1600A, 150kA
• PMSky SCADA system
Whole electrical parameter monitoring, intelligent energy management, remote control
• Structure
The hinges of door panel have an opening angle of at least 120°
IP rating can be IP30, IP40, IP31, IP41, IP42, IP55
• Safety and Reliability
Internal safety barriers separate the busbar compartment from the equipment compartment, the compartment
can be up to Form 4b
