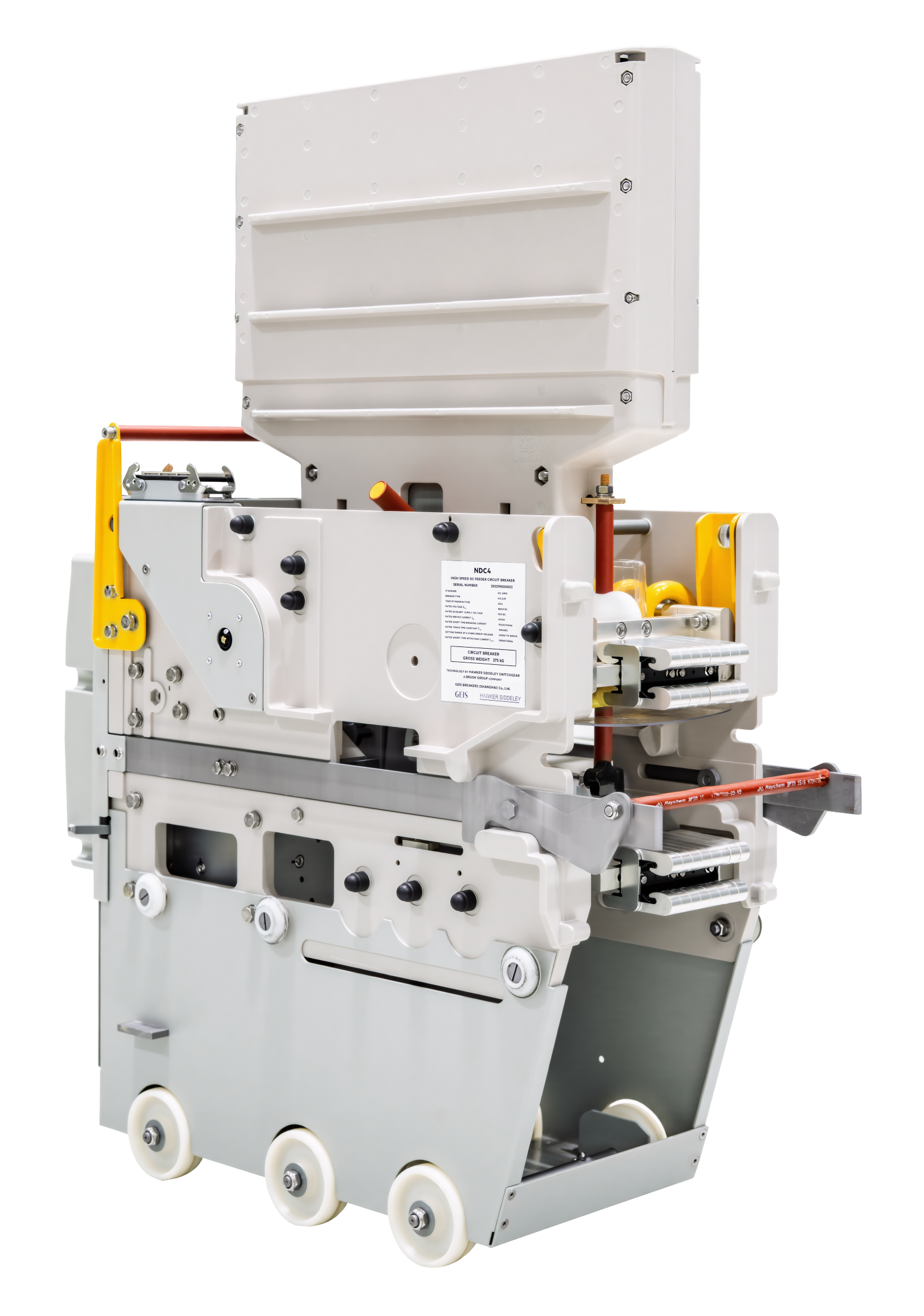

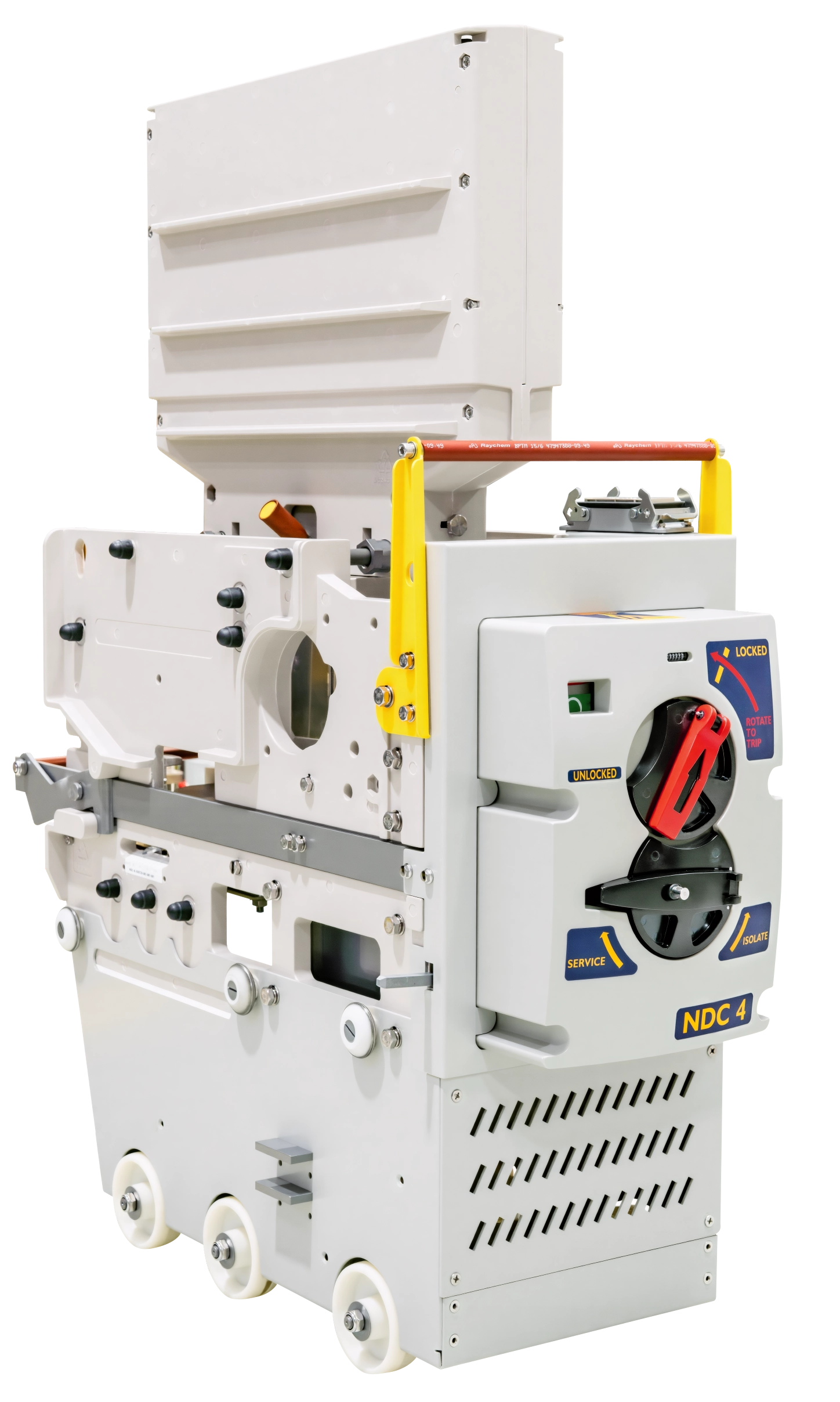

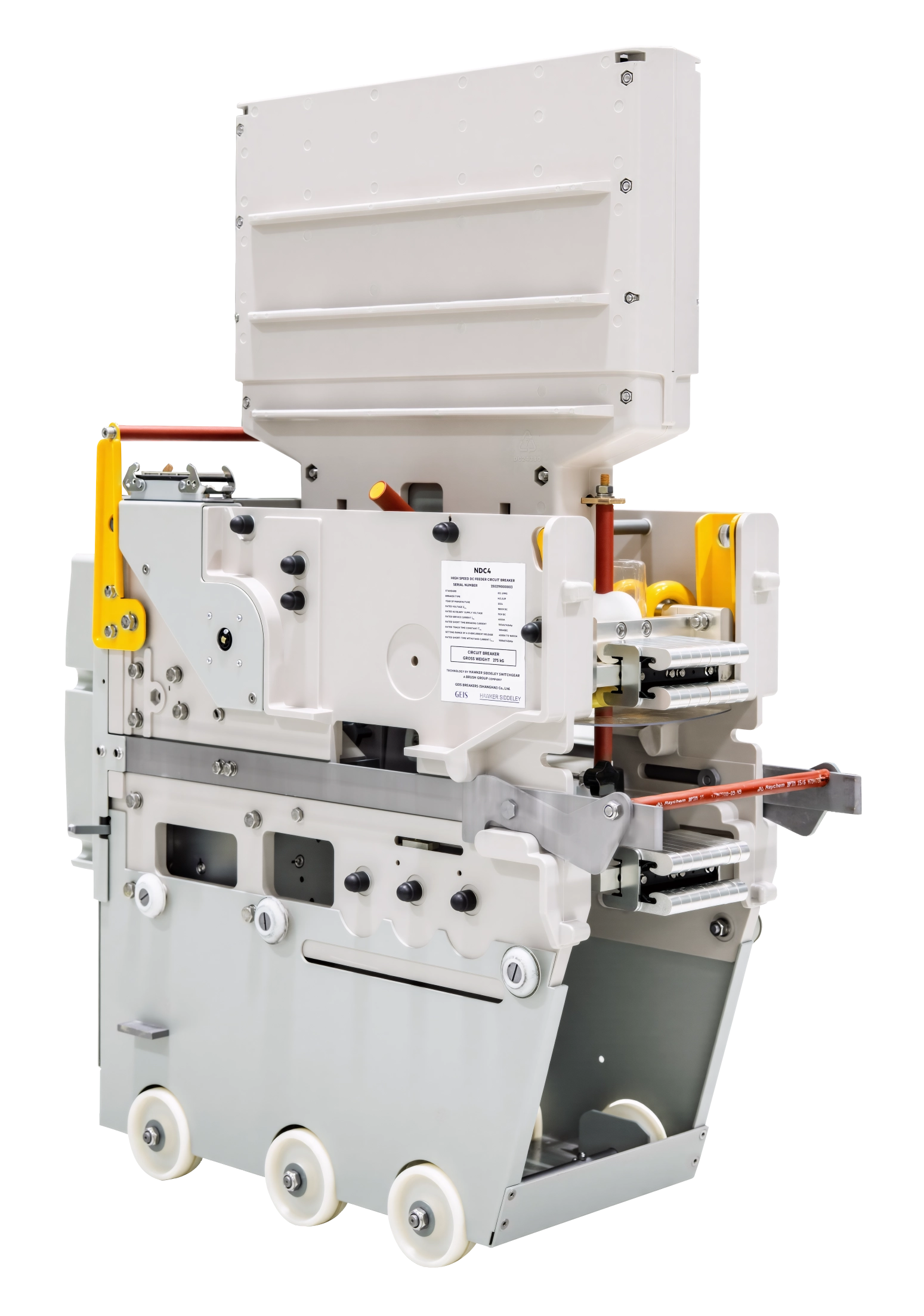

NDC HVDC Fast Circuit Breaker
NDC DC circuit breaker is single pole, large amperage design, fast response to the faults and high-speed breaking capacity. With the extremely high reliability and advanced design, it is widely used in DC distribution networks
|
Product Features |
-
High arc extinguishing capability by cold cathode principle with optimized arc runners
-
Patented passive magnetic blow-out coil Critical current lower than 25A
-
Tungsten carbide silver contacts, extremely endurance for high arcing
-
Equipped with integrated truck as standard configuration, more reliable in overall and reduces the additional workloads
-
Unique integrated aviation plug/socket
-
Integrated multi-functional operation facias, featuring rock-in/out, emergency disconnection, and special patented interlocking design
-
Bi-directional Direct Overload Trip device(DAT), trip time less than 5ms
-
Permanent magnet actuator, with few moving parts, no mechanical wear and maintenance-free; constant closing speed, and extremely high reliable
Permanent magnet latch, more energy-efficient
